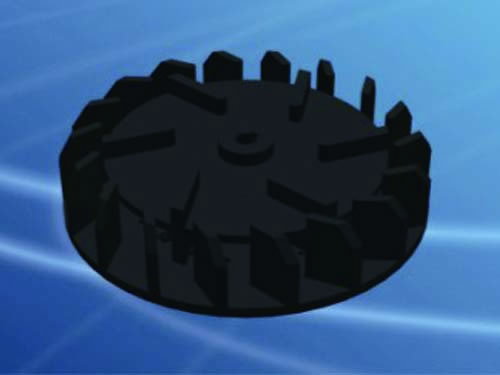

Rubber Stators and Rotors

Description

Stators and Rotors can be made from rubber or PU material; here we introduce rubber Stators and Rotors as follows.
We can supply rubber rotor and stator for flotation machines with various series including: XJK, GF, BF, JJF, CLF, BXK, SF, KYF, XCF. Our products are with the property of resistance to wear and resistance to erosion.

Note:

The products also can be customized according to client’s requirement.

Application

Rubber rotors and stators are the central components of flotation machine, which are mainly applied in beneficiation of metals or non-metals.

Series of products

Products Specification Property Products Specification Property Products Specification Property
Series XJK Series GF Series BF
Stator & Rotor 1A XJK-0.13 Resistance to wear and Resistance to erosion Stator&Rotor GF-0.37 Resistance to wear and Resistance to erosion Stator & Rotor BF-0.37 Resistance to wear and Resistance to erosion
Stator & Rotor 2A XJK-0.23 Stator&Rotor GF-1.2 Stator & Rotor BF-1.2
Stator & Rotor 3A XJK-0.35 Stator&Rotor GF-2.8 Stator & Rotor BF-2.8
Stator & Rotor 4A XJK-0.62 Stator&Rotor GF-43 Stator & Rotor BF-43
Stator & Rotor 5A XJK-1.1 Stator&Rotor GF-43 Stator & Rotor BF-83
Stator & Rotor 6A XJK-2.8 Stator&Rotor GF-163 Stator & Rotor BF-163
Stator &Rotor 7A XJK-3.5 Stator&Rotor GF-203 Stator & Rotor BF-203
Products Specification Property Products Specification Property Products Specification Property
Series JJF Series CLF, BXK Series SF
Stator & Rotor JJF-0.37 Resistance to wear and Resistance to erosion Stator & Rotor GLF-43 Resistance to wear and Resistance to erosion Stator & Rotor SF-0.37   Resistance to wear and Resistance to erosion
Stator & Rotor JJF-1.1 Stator & Rotor GLF-83 Stator & Rotor SF-1.2
Stator & Rotor JJF-2.8 Stator & Rotor GLF-163 Stator & Rotor SF-2.8
Stator & Rotor JJF-43 Stator & Rotor GLF-403 Stator & Rotor SF-43
Stator & Rotor JJF-83 Stator & Rotor BXK-43 Stator & Rotor SF-83
Stator & Rotor JJF-163 Stator & Rotor BXK-83 Stator & Rotor SF-163
Stator & Rotor JJF-203 Stator & Rotor BXK-163
Stator & Rotor JJF-383 Stator & Rotor BXK-383
Products Specification Property Products Specification Property Products Specification Property
Series KYF\XCF
Stator & Rotor KYF-43(11) Resistance to wear and Resistance to erosion Stator&Rotor XCF-163(11) Resistance to wear and Resistance to erosion Stator&Rotor XCF-503 Resistance to wear and Resistance to erosion
Stator & Rotor XCF-43(11) Stator&Rotor XCF-243 Stator&Rotor KYF-503

Parameter:

Items Unit Index
Tensile strength≥   17
Coefficient of resistance to acid or alkali  20%h2SO(20%NaOH) 18℃×24H   0.8
elongation at break≥ % 450
Hardness Shore Hardness A 55±5
Coefficient of hot air aging≥90℃×24H   0.75
Abrasion loss≤ CM3/1.61km 0.7
Adhesion of metal and rubber roller≥ Mpa 2.5
Permanent distortion after snap≤ % 30
Oil-proof system 20#engine oil 100℃×24H% % ±10~5
